Tapered Designer Sleeve in Silver - Complete Speaker
Now Shipping!
SoundTube Designer Sleeve Hanging Speaker What's included:• Designer Sleeve Pendant Speaker (DS31-EZ-BASE)
• Silver Tapered Sleeve (AC-DS31-EZ-TS-SL)
• Silver Magnetic Grille (GRL-DS31-EZ-SL)
• Silver Surface-Mounting Bracket (AC-SMB-DS31-SL)
Looking for an individual sleeve, grille, or mounting bracket? Check out our Designer Sleeve accessories.
SoundTube Designer Sleeve
From the creator of The Original Pendant Speaker™ in 1985, SoundTube Entertainment has just reinvented the category with the launch of the Designer Sleeve. The Designer Sleeve's redefined aesthetics give designers options for the pendant category they haven’t seen before. The sleek ultra-modern look and feel fits comfortably in any décor where design is as essential as sound quality.

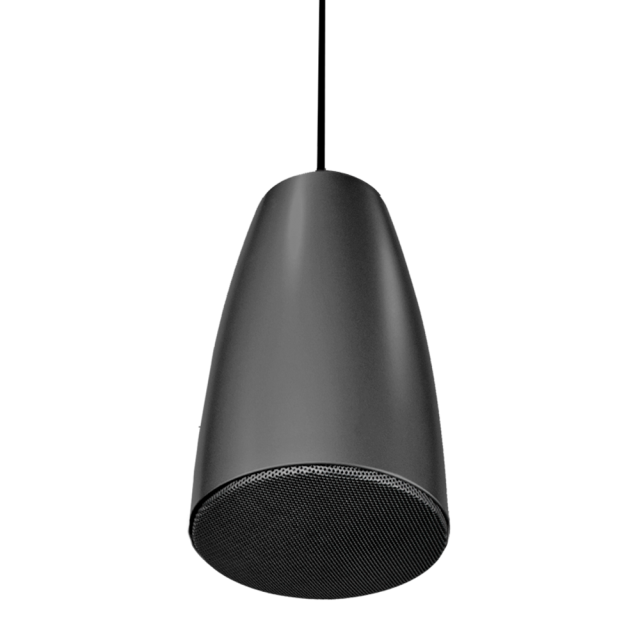

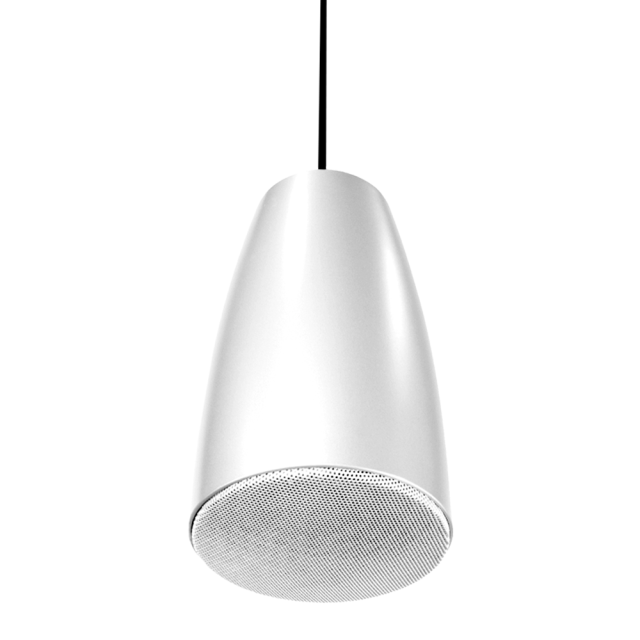

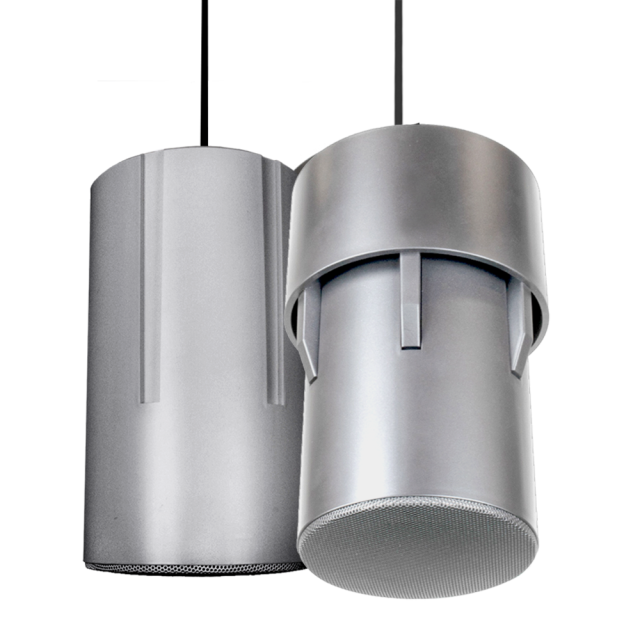

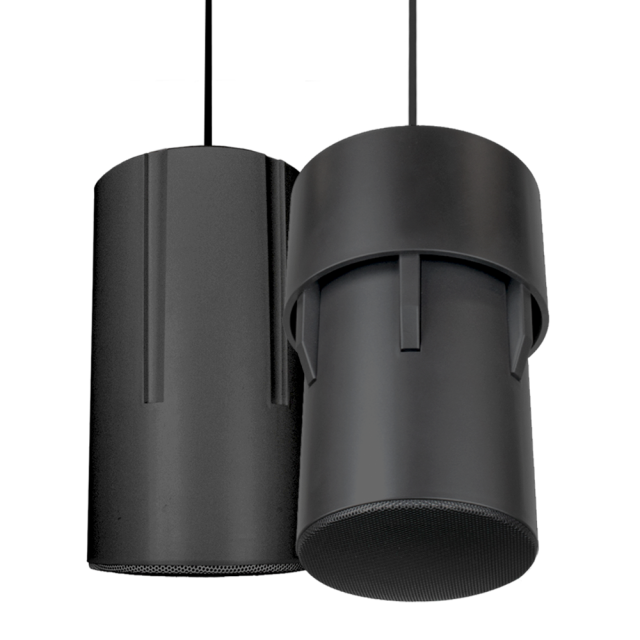

The Designer Sleeve DS31-EZ pendant speakers were developed to offer varying aesthetic options for open ceiling and near space applications that require a design element to meet décor needs. The speaker can be used with or without the sleeve based on the desired look with multiple contemporary slide-on sleeves to match any aesthetic. The speakers blend well with drop lighting and are available in silver (DS31-EZ-SL), black (DS31-EZ-BK), and white (DS31-EZ-WH).
The DS31-EZ is a premium full-range 3-inch pendant-mount speaker with a polypropylene driver and butyl rubber surround for long lasting performance. The DS31-EZ incorporates the ultra-low profile ZeroReflection™ ABS enclosure with a magnetically attached grille with a protective power coated finish. The Designer Sleeve’s IPX6 rating makes it ideal for indoor or outdoor use.
Owner's Manual | Cut Sheet | Tech Sheet | Mechanical Drawing | PDF Drawing | A&E Specs | DWG | Mounting Plate | GLL
About SoundTube
| Color | Silver |
|---|---|
| UPC | 644216229703 |
| Manufacturer | SoundTube |
| Manufacturer's Category | MM/DS Contemporary Pendants |
| Height | 8.25 in / 209.55 mm |
| Width/Diameter | 4.75 in / 120.65 mm |
| Shipping Weight | 6 lbs / 2.7 kg |
| Certifications | CE, RoHS |
| Enclosure Properties | ABS |
| Included Accessories | Grille, Hanging Hardware, Mounting Assembly, Wire Nuts, Designer Sleeve |
| Source Inputs | Wire Leads |
| IP Rating | IPX6 |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Coverage Angle (±6dB @ 2kHz) | 90° |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 4.9 and 7.1 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.1 dB and 8.5 dB |
| Frequency Response (± 10 dB) | 80 Hz - 20 kHz |
| Frequency Response (± 3 dB) | 115 Hz - 14 kHz |
| Grille Properties | Magnetic, Powder-Coated, Steel |
| Max. Continuous Power RMS | 30 W |
| Max SPL @ 1M | 97.2 dB RMS, 112 dB Max |
| Max. Program Power | 60 W |
| Nominal Impedance (Ω Ohms) | 8 Ω |
| Fullrange Driver | 3" Polypropylene driver with butyl rubber surround |
| Sensitivity dB @ 1W/1M | 87 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 5W/20W/20W |
