IPD4-CM52 KIT
IPD4-CM52 KIT
In stock

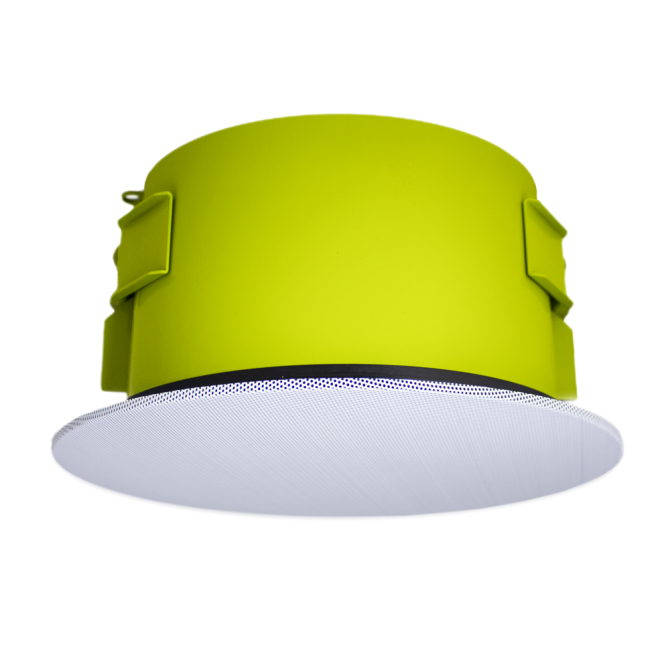

SoundTube Kit consisting of one master IPD4-CM52-BGM-II-WH 5.25" 2-way IP addressable Dante/AES67 POE in-ceiling speaker and three CM52-BGM-II-WH in-ceiling passive speakers.
SoundTube IPD4-CM52 KIT in White
The IPD4-CM52 KIT is a complete in-ceiling audio solution designed for seamless integration into Dante and AES67 networked audio systems. This kit includes:
- One Master IPD4-CM52-BGM-II Speaker – A 5.25" 2-way IP-addressable in-ceiling speaker with Dante/AES67 compatibility and PoE power
- Three CM52-BGM-II-WH Passive Satellite Speakers – High-performance in-ceiling speakers designed to connect to the master unit for a scalable audio solution
Ideal for commercial installations, the IPD4-CM52 KIT delivers high-quality sound with networked convenience, making it perfect for distributed audio applications.
About SoundTube
| Color | White |
|---|---|
| UPC | 644216239702 |
| Manufacturer | SoundTube |
| Manufacturer's Category | STNet IP-Addressable and Dante Series |
| Shipping Weight | 9.2 lbs / 4.17 kg |
| Carton Height | 8 in / 203.2 mm |
| Carton Length | 13.25 in / 336.55 mm |
| Carton Width | 13.25 in / 336.55 mm |
| Certifications | CE, UL2043, UL60065, ETL-C/US |
| Enclosure Properties | ABS, Steel |
| Included Accessories | 6-Pin Euroblock, Conduit Clamp, Cover Plate, Grille, Paint Mask |
| Optional Accessories | Pre-Construction Bracket (AC-CMEZ6/8-PCB)|Black Grille (GRL-CM-BGM-II-BK) |
| Source Inputs | 6 Pin 5.08mm Euroblock, RJ45 Ethernet Port |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Backcan Diameter | 9.67 in / 245.6 mm |
| Backcan Height | 5.75 in / 146.1 mm |
| Crossover Frequency | 5.0 kHz |
| Cutout Width/Diameter | 10.5 in / 266.7 mm |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 3.8 and 2.1 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.1 dB and 3.3 dB |
| Frequency Response (± 10 dB) | 56 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 67 Hz - 20 kHz |
| Grille Properties | Standard-Flange, Friction-Fit, White, Paintable, Painted, Steel |
| Low Frequency Voice Coil | 1 in / 25.4 mm |
| Low Pass Crossover | 12 dB per octave 2nd order |
| Max. Ceiling Thickness | 1.6 in / 40.6 mm |
| Max SPL @ 1M | 93 dB |
| Minimum Ceiling Thickness | 0.04 in / 0.9 mm |
| Network Type: High Pass | 12 dB per octave 2nd order |
| Tweeter Driver | .75" Silk Dome w/ BroadBeam Ring® |
| Woofer Driver | 5.25" Polypropylene Cone w/ Butyl Rubber Surround |
| Power for Max SPL | 40 W |
| Visible Diameter | 298.5 mm |
| Visible Height | 8.6 mm |
