IPD4-CM62 KIT
IPD4-CM62 KIT
In stock
SoundTube Kit consisting of one master IPD4-CM62-BGM-II-WH 6.5" 2-way IP addressable Dante/AES67 POE in-ceiling speaker and three CM62-BGM-II-WH in-ceiling passive speakers.

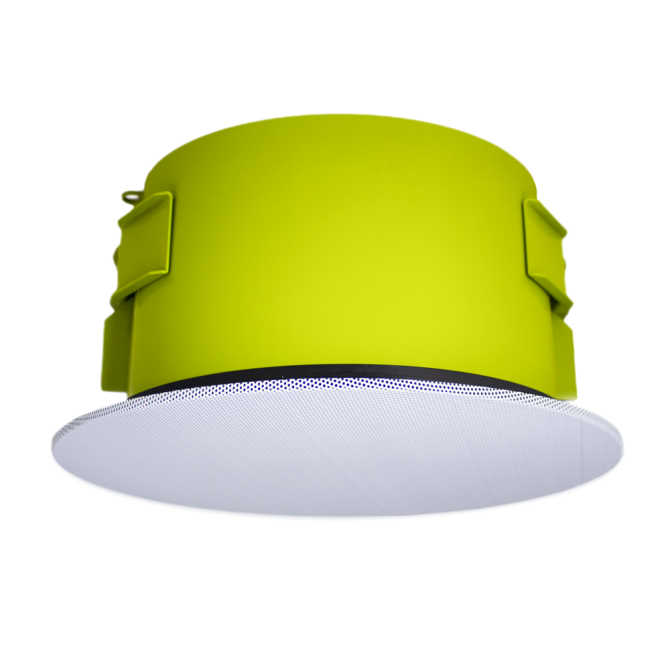

SoundTube IPD4-CM62 KIT in White
The IPD4-CM52 KIT is a complete in-ceiling audio solution designed for seamless integration into Dante and AES67 networked audio systems. This kit includes:
- One Master IPD4-CM62-BGM-II Speaker – A 6.5" 2-way IP-addressable in-ceiling speaker with Dante/AES67 compatibility and PoE power
- Three CM62-BGM-II-WH Passive Satellite Speakers – High-performance in-ceiling speakers designed to connect to the master unit for a scalable audio solution
Ideal for commercial installations, the IPD4-CM62 KIT delivers high-quality sound with networked convenience, making it perfect for distributed audio applications.
About SoundTube
| Color | White |
|---|---|
| UPC | 644216239603 |
| Manufacturer | SoundTube |
| Manufacturer's Category | STNet IP-Addressable and Dante Series |
| Shipping Weight | 11.25 lbs / 5.10 kg |
| Carton Height | 8 in / 203.2 mm |
| Carton Length | 13.25 in / 336.55 mm |
| Carton Width | 13.25 in / 336.55 mm |
| Certifications | CE, UL2043, UL60065, ETL-C/US |
| Enclosure Properties | ABS, Steel |
| Included Accessories | Conduit Clamp, Grille, Tile Bridge |
| Optional Accessories | Tile Bridge (AC-CMEZ6/8-TB)|Black Grille (GRL-CM-BGM-II-BK) |
| Source Inputs | 6 Pin 5.08mm Euroblock, RJ45 Ethernet Port |
| IP Rating | IPX3 |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Backcan Diameter | 9.67 in / 245.6 mm |
| Backcan Height | 5.75 in / 146.1 mm |
| Crossover Frequency | 4.0 kHz |
| Cutout Width/Diameter | 10.5 in / 266.7 mm |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 5.9 and 8.0 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 4.9 dB and 6.3 dB |
| Frequency Response (± 10 dB) | 55 Hz - 20 kHz |
| Frequency Response (± 3 dB) | 60 Hz - 20 kHz |
| Grille Properties | Standard-Flange, Friction-Fit, White, Paintable, Painted, Steel |
| Low Pass Crossover | 12 dB per octave 2nd order |
| Max. Ceiling Thickness | 1.6 in / 40.6 mm |
| Max SPL @ 1M | 95 dB |
| Minimum Ceiling Thickness | 0.035 in / 0.89 mm |
| Network Type: High Pass | 12 dB per octave 2nd order |
| Tweeter Driver | 1" Silk Dome w/ BroadBeam Ring® |
| Woofer Driver | 6.5" Polypropylene Cone w/ Butyl Rubber Surround |
| Visible Diameter | 11.75 in / 298.5 mm |
| Visible Height | 0.34 in / 8.6 mm |
