SoundTube 3" Neo Motor Ceiling Speaker in White with Transformer

SoundTube RF31-EZ-T Ceiling Speaker with added Transformer in White

The RF31-EZ-T is a premium full-range 3 inch speaker with a 10 watt transformer for applications requiring 25, 70, and 100 volt audio solutions. The RF31-EZ-T mounts in most dual-gang junction boxes. The RF31- EZ-T incorporates a low-profile grille with a total visible footprint of 4.75-inch square for ultra-compact installations. All exposed components in the RF31-EZ-T are completely weatherized for indoor and outdoor applications.

Owner's Manual | Tech Sheet | Mechanical Drawing | A&E Specs | GLL | EASE 4.0 | EASE 3.0 | CLF1 | CLF2 | DXF | DWG | PDF Drawing

About SoundTube
More Information
ColorWhite
UPC644216200702
ManufacturerSoundTube
Manufacturer's CategoryRF Raw Frame Series
Height4.75 in / 120.7 mm
Width/Diameter4.75 in / 120.7 mm
Shipping Weight1.05 lbs / 0.48 kg
Carton Height7 in / 177.8 mm
Carton Length6.75 in / 171.45 mm
Carton Width6.5 in / 165.1 mm
CertificationsCE, RoHS, UL1480A
Enclosure PropertiesABS
Included AccessoriesGrille, Paint Mask

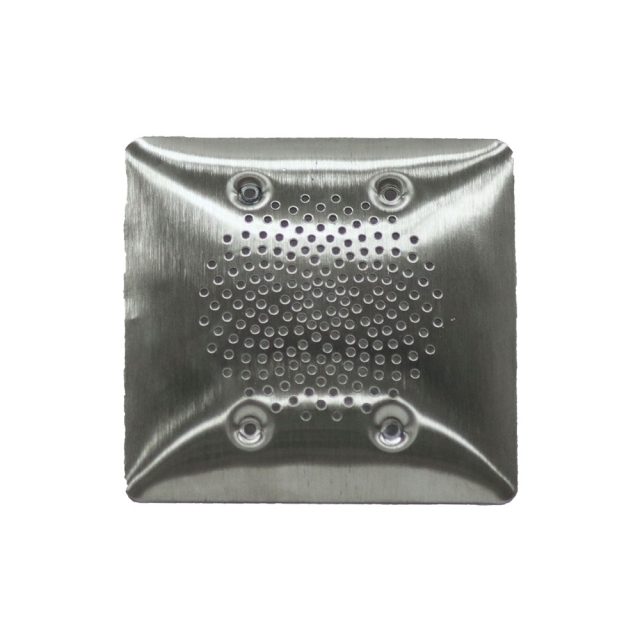

Optional AccessoriesBlack Grille (GRL-RF31-WH)|Theft-Resistant Grille (AC-RF31-TRG)
Source InputsTerminal Strip
TAA Compliant (Trade America)No
BAA Compliant (Made in USA)No
Coverage Angle (±6dB @ 2kHz) 50°
Cutout Width/Diameter4 in / 101.6 mm
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)4.3 and 2.4
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)5.4dB and 3.8dB
Frequency Response (± 10 dB)82 Hz - 22 kHz
Frequency Response (± 3 dB)170 Hz - 14 kHz
Grille PropertiesAluminum, Standard-Flange, White, Paintable, Snap-Fit
Low Frequency Voice Coil0.75 in / 19 mm
Max. Continuous Power RMS10W
Max. Program Power20 W
Minimum Impedance (Ω Ohms)8 Ω
Mounting Depth2.11 in / 53.6 mm
Nominal Impedance (Ω Ohms)8 Ω
Sensitivity dB @ 1W/1M85 dB
Sensitivity dB @ 2.83V/1M85 dB
Tap SelectorTerminal Block
Transformer Options25 / 70.7 / 100 V
Visible Diameter4.75 in / 120.7 mm
Visible Height4.75 in / 120.7 mm
