SoundTube 6.5" Hanging Speaker in Black

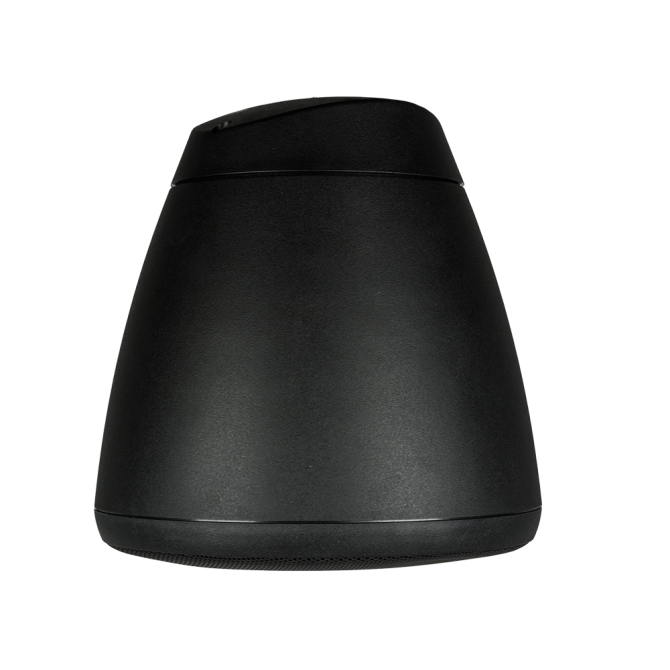

SoundTube RS62-EZ Hanging Speaker in Black

Designed for superior off-axis performance and easy installation, the RS62-EZ offers attractive styling in an economical speaker for open-ceiling uses. The RS62-EZ uses one 6.5 inch (165 mm) coaxial driver with BroadBeam Ring technology for consistently smooth high frequency sound and 16 ohm impedance for easy daisy chaining in low voltage systems. The RS62-EZ includes galvenized steel hanging cables and a built in mounting plate for suspending the speaker as well as a threaded opening on top of it®'s cover plate for direct-to-conduit mounting. The enclosure is constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications and includes an aluminum grille with protective powder coated finish. Cost effective engineering with high-performance sound makes the RS62-EZ speaker ideal for music and paging applications in retail, grocery stores, restaurants, hotels, casinos, museums, trade shows and conference rooms and is suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. For applications where additional bass is required, SoundTube®'s RS1001i-II-T 10-inch subwoofer may be used. Hanging hardware, weather plug, cover plate, and AC-RSEZ-HH-10 are included.

Owner's Manual | Tech Sheet | Mechanical Drawing | GLL | EASE 3.0 | EASE 4.0 |  A&E Specs | UL Certificate

About SoundTube
More Information
ColorBlack
UPC752830445987
ManufacturerSoundTube
Manufacturer's CategoryRS-EZ Economical Pendant
Height10.4 in / 264.2 mm
Width/Diameter10.08 in / 256 mm
Shipping Weight9.5 lbs / 4.31 kg
Carton Height13.25 in / 336.55 mm
Carton Length12 in / 304.8 mm
Carton Width12 in / 304.8 mm
CertificationsCE, EN54, RoHS, UL1480A
Enclosure PropertiesPorted, Reinforced ABS
Included AccessoriesAdapter, Cover Plate, Hanging Hardware, Weather Plug, Wire Gland
Optional AccessoriesBlack Grille (GRL-RS62-EZ-BK)|10' Hanging Cable (AC-RS-HH-10)|20' Hanging Cable (AC-RS-HH-20)|50' Hanging Cable (AC-RS-HH-50)|Black Mounting Bracket (AC-RS-SM5-BK)|Beam Clamp (AC-BC1)|Forged Eye Bolt (AC-FE1)|Black Split Loom Tubing (AC-SLT-10-BK)|Snap Link (AC-SL1)
Source Inputs4 Pin Ceramic Terminal
TAA Compliant (Trade America)No
BAA Compliant (Made in USA)No
Crossover Frequency3.0 kHz
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)3.6 and 7.1
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)5.5dB and 8.5dB
Frequency Response (± 10 dB)80 Hz - 22 kHz
Frequency Response (± 3 dB)100 Hz - 22 kHz
Grille PropertiesAluminum, Powder-Coated
Low Frequency Voice Coil1 in / 25.4 mm
Low Pass Crossover6 dB per octave 1st order
Max. Continuous Power RMS32W
Max. Program Power64 W
Minimum Impedance (Ω Ohms)16 Ω
Network Type: High Pass6 dB per octave 1st order
Nominal Impedance (Ω Ohms)16 Ω
Tweeter Driver1" Silk Dome w/ BroadBeam Ring®
Woofer Driver6.5" Polypropylene Cone w/ Butyl Rubber Surround
Sensitivity dB @ 1W/1M91.2 dB
Sensitivity dB @ 2.83V/1M88.2 dB
Tap SelectorRotary Switch
Transformer Options25 / 70.7 / 100 V, 16 Ohm direct
Transformer Taps Max. Setting (25V/70.7V/100V)4W/32W/32W
