April 8, 2022
SM52-EZ-WH
SM52-EZ-WH
Out of stock

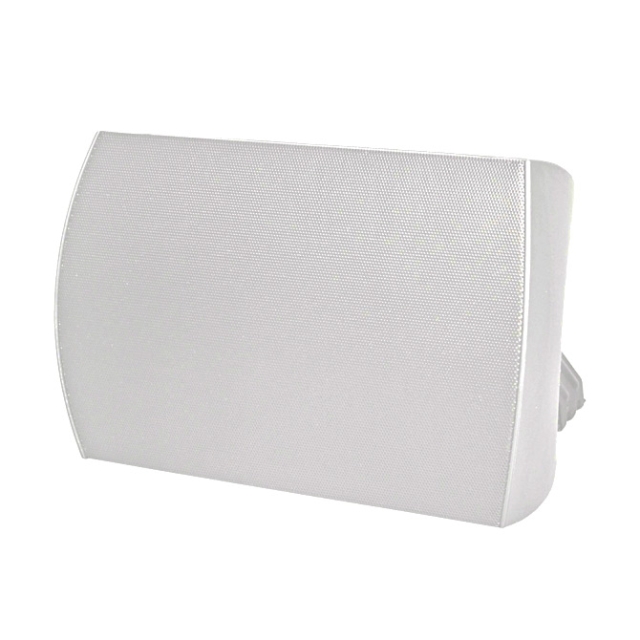

SoundTube 5.25" Outdoor Surface Mount Speaker in White
This product has been discontinued. Update to SM52-EZ-WX-WH.
SoundTube SM52-EZ Outdoor Surface Mount Speaker in White
The SM52-EZ is an economical solution for integrators who need a surface-mount indoor or outdoor speaker option for music and paging applications. The speaker incorporates a dedicated 5.25 inch polypropylene woofer and an offset 1 inch soft dome tweeter with waveguide to deliver superb intelligibility for background to foreground music and messaging (up to 100.0 dB max. SPL). SoundTube's proprietary BroadBeam Ring™ technology in all models ensures high intelligibility, even well off-axis. Enclosures for the SM52-EZ are ported, with port plugs included for outdoor use; grilles and mounting hardware are powder coated aluminum. With its 32 watt transformer and 6 position tap switch, the SM52-EZ offers 25.5 V, 70.7 V and 100 V operation with an 8 ohm bypass. Inputs are made via ceramic terminal strips, making these speakers suitable for European voice evacuation systems. A safety cable, wall mount bracket, conduit connector and port hole plug are all included.
Owner's Manual | Tech Sheet | Mechanical Drawing | A&E Specs | Revit | GLL | CLF 2
About SoundTube| Color | White |
|---|---|
| UPC | 748252171986 |
| Manufacturer | SoundTube |
| Manufacturer's Category | SM-EZ Economical Surface Mount |
| Height | 11.88 in / 301.8 mm |
| Width/Diameter | 7.5 in / 190.5 mm |
| Shipping Weight | 8.95 lbs / 4.06 kg |
| Carton Height | 12 in / 304.8 mm |
| Carton Length | 15.25 in / 387.35 mm |
| Carton Width | 10.5 in / 266.7 mm |
| Certifications | CE, IP65, RoHS, UL1480A |
| Enclosure Properties | Polystyrene, Ported |
| Included Accessories | Back Cover, Mounting Hardware, Port Plug, Safety Cable, Wire Gland |
| Source Inputs | 4 Pin Ceramic Terminal |
| Crossover Frequency | 3.5 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 6.9 and 5.9 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.2dB and 7.7dB |
| Frequency Response (± 10 dB) | 55 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 65 Hz - 20 kHz |
| Grille Properties | Aluminum, Powder-Coated |
| Low Frequency Voice Coil | 1 in / 25.4 mm |
| Low Pass Crossover | 12 dB per octave 2nd order |
| Max. Continuous Power RMS | 50W |
| Max. Program Power | 100 W |
| Minimum Impedance (Ω Ohms) | 8 Ω |
| Mounting Depth | 6.63 in / 168.4 mm |
| Network Type: High Pass | 12 dB per octave 2nd order |
| Nominal Impedance (Ω Ohms) | 8 Ω |
| Tweeter Driver | 1" Soft Dome |
| Woofer Driver | 5.25" Polypropylene |
| Sensitivity dB @ 1W/1M | 84 dB |
| Sensitivity dB @ 2.83V/1M | 84 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
