SM82-EZ-II-BK

SoundTube SM82-EZ-II Outdoor Surface Mount Speaker in Black

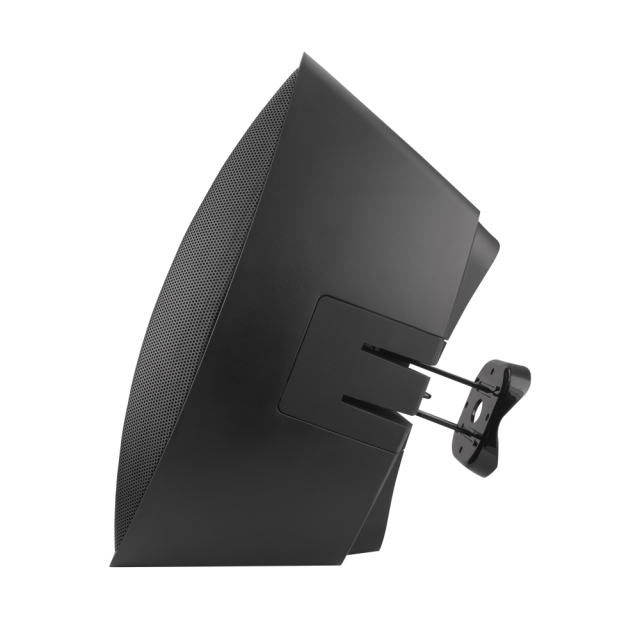

The SM82-EZ-II is an economical solution for integrators who need a surface-mount indoor or outdoor speaker option for music and paging applications. SM82-EZ-II incorporates a dedicated 8-inch polypropylene woofer and an offset 1-inch soft dome tweeter with waveguide to deliver superb intelligibility for background to foreground music and messaging (up to 106.0 dB max. SPL). SoundTube's proprietary BroadBeam Ring™ technology in all models ensures high intelligibility, even well off-axis. The SM82-EZ-II uses a 64-watt low-insertion loss transformer and a six-position tap switch with a transformer bypass position. Enclosures for the SM52-EZ are ported, with port plugs included for outdoor use; grilles and mounting hardware are powder coated aluminum. Mounting for the SM82-EZ-II includes a proprietary, tool-free, low-profile Stealth^™ bracket with a direct drive cam-wedge for stable and precise aiming up to 90 in one direction. Inputs are made via ceramic terminal strips, making these speakers suitable for European voice evacuation systems. A safety cable, wall mount bracket, conduit connector and port hole plug are all included.

Owner's Manual | Tech Sheet | Mechanical Drawing | A&E Specs |  Revit |  GLL |  CLF 2
